Transfer Panels

Transfer Panels

Flexible Media Routing

Your Process Your Design

Flexible and safe routing of media and utility solutions keep production facilities running smoothly

IPEC custom transfer panels enable routing of fluids in a safer, more efficient manner when compared to flex hoses. Our equipment is designed and optimized for each customer’s unique process, facility and operational requirements to provide reliable yet cost-effective solutions.

Connect

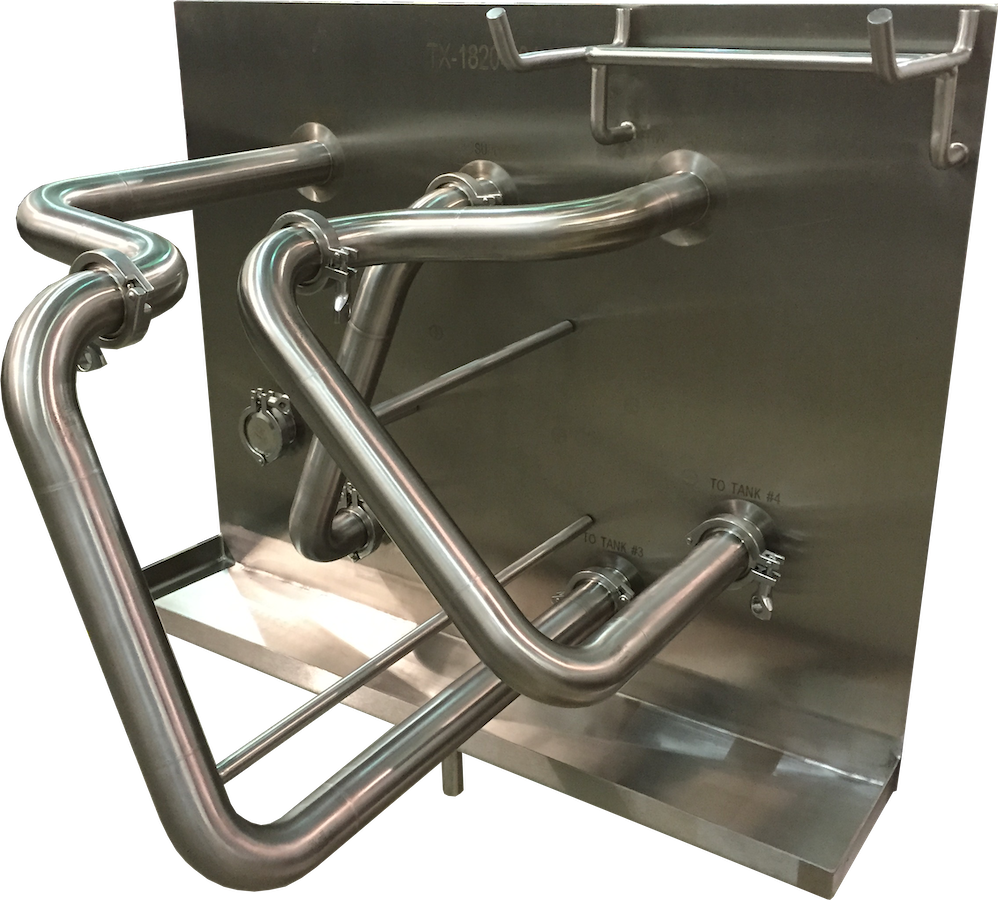

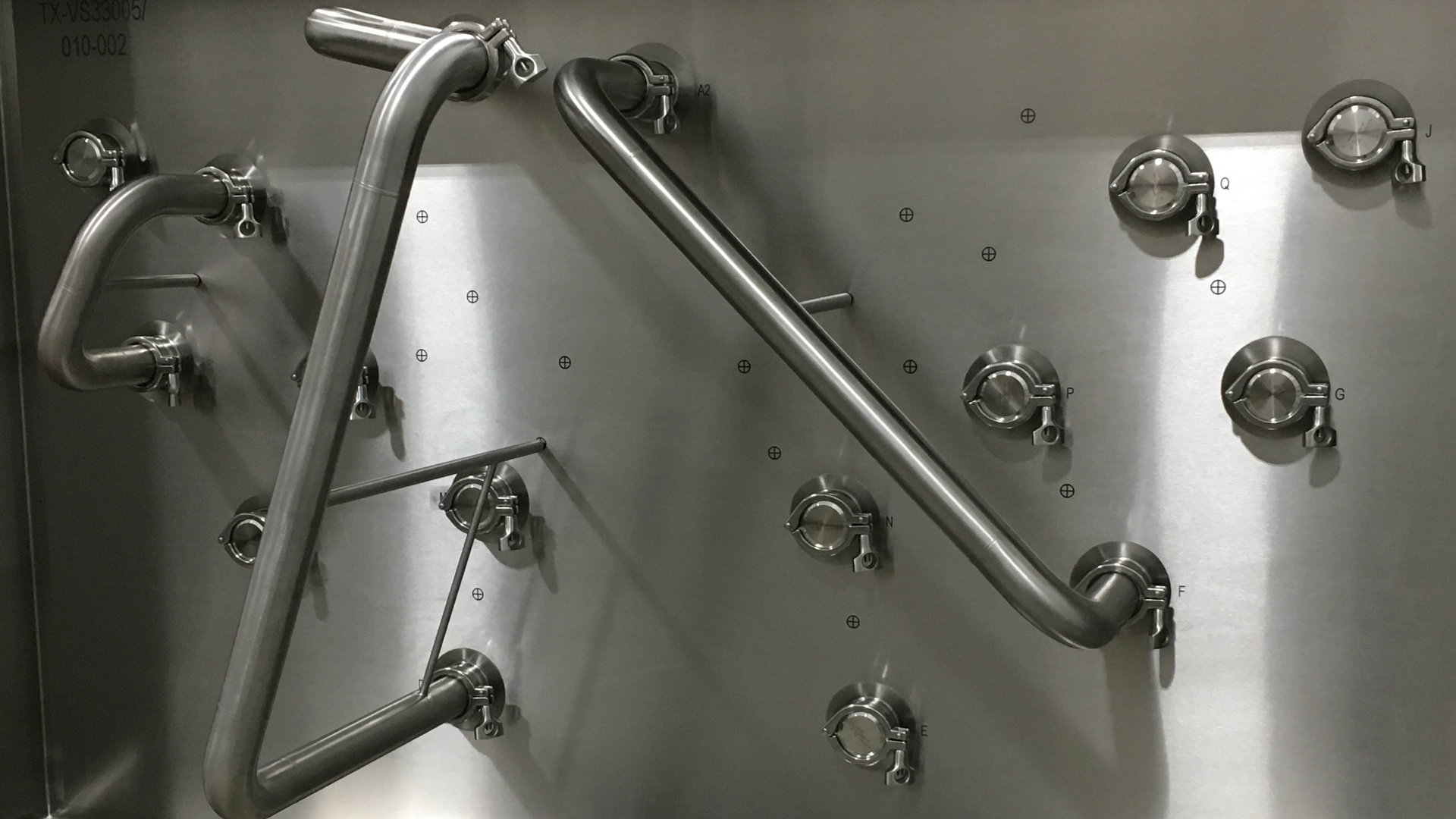

Transfer panels provide configurable piping circuits that allow routing process and utility fluids to and from multiple unit operations.

Confirm

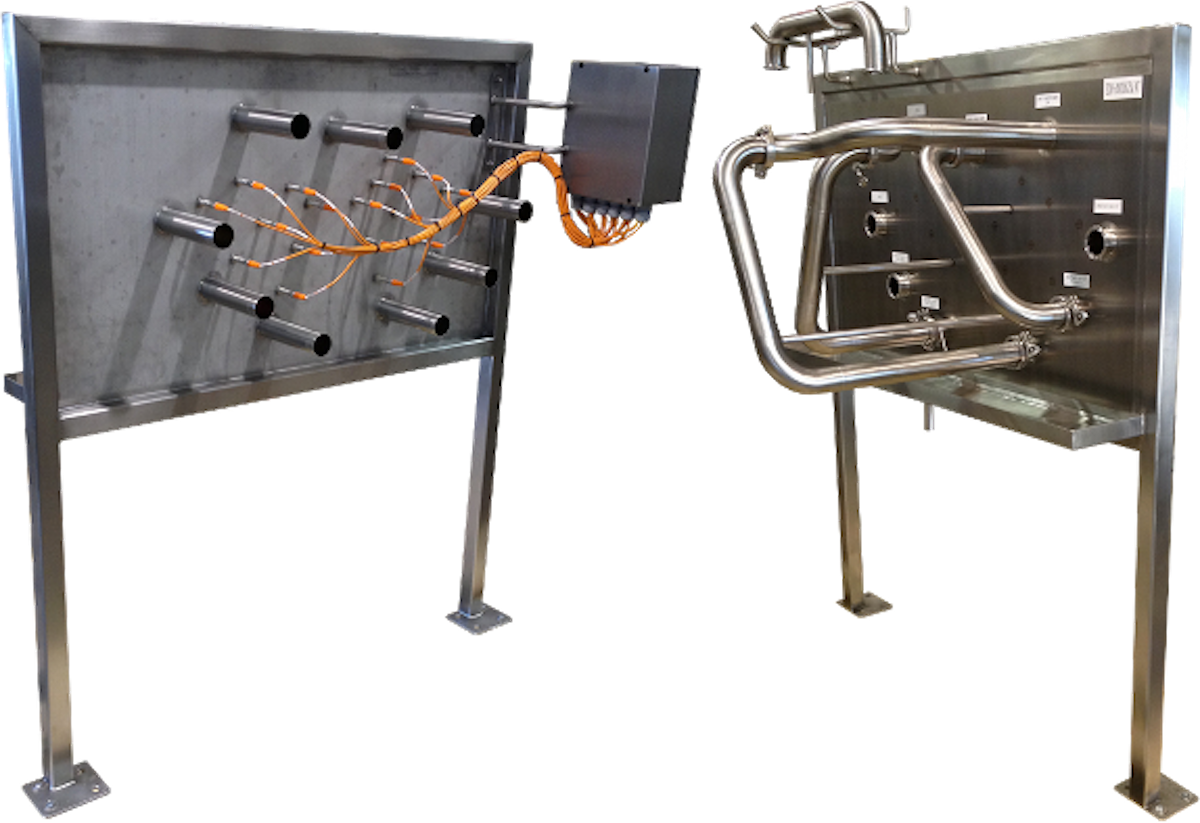

Available proximity sensors confirm jumper positions and associated piping circuits, interlocking process activities if an incorrect path is made.

Protect

By creating a physical break between piping segments, transfer panels protect upstream and downstream operations from inadvertent contamination.

Detailed engineering, sound craftsmanship and high-quality materials are used in producing each assembly.

Your Process. Your Design.

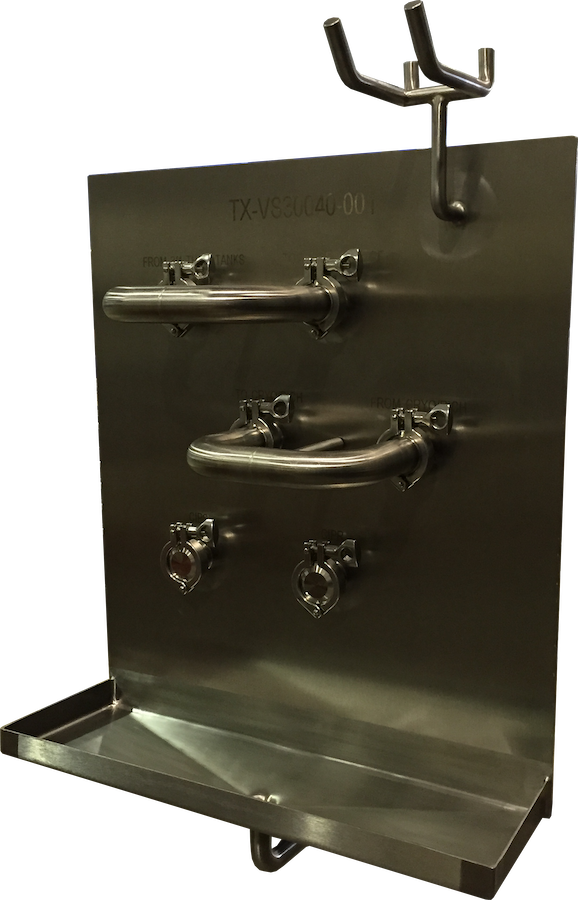

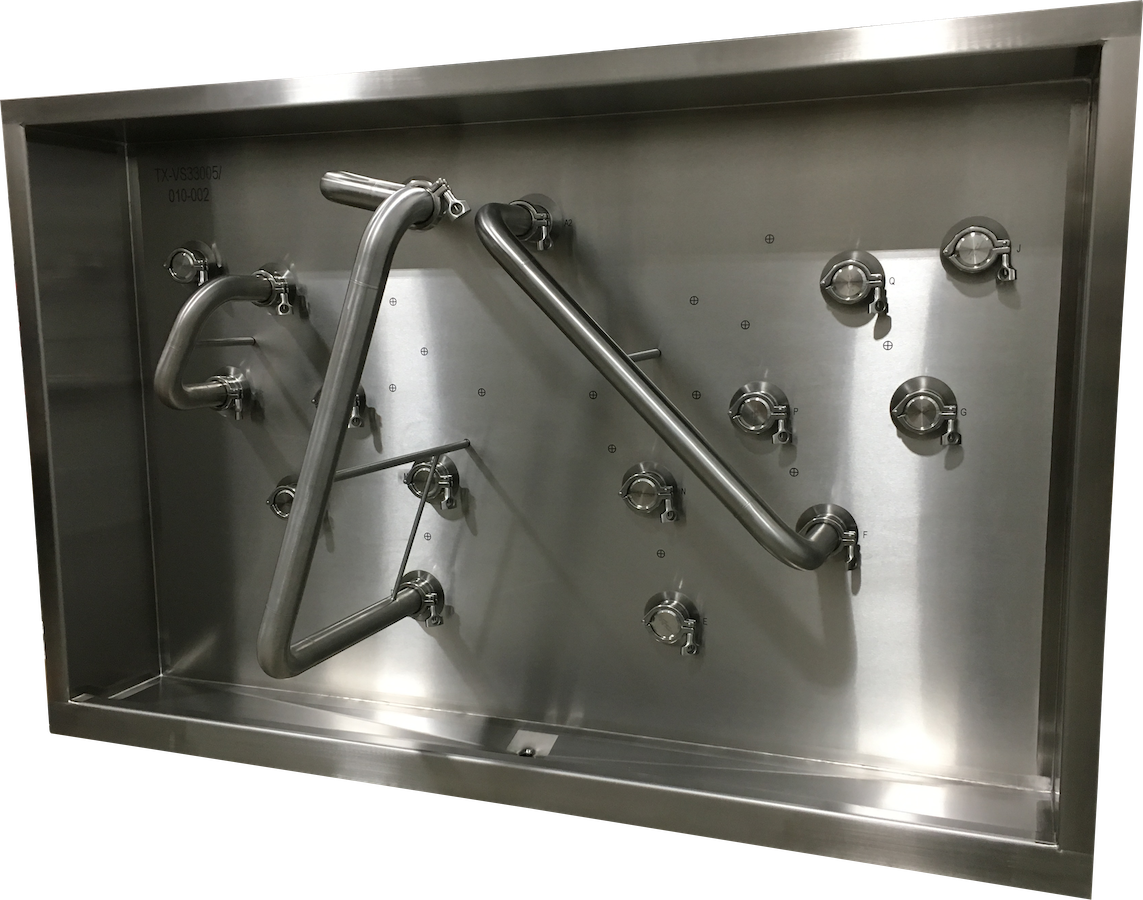

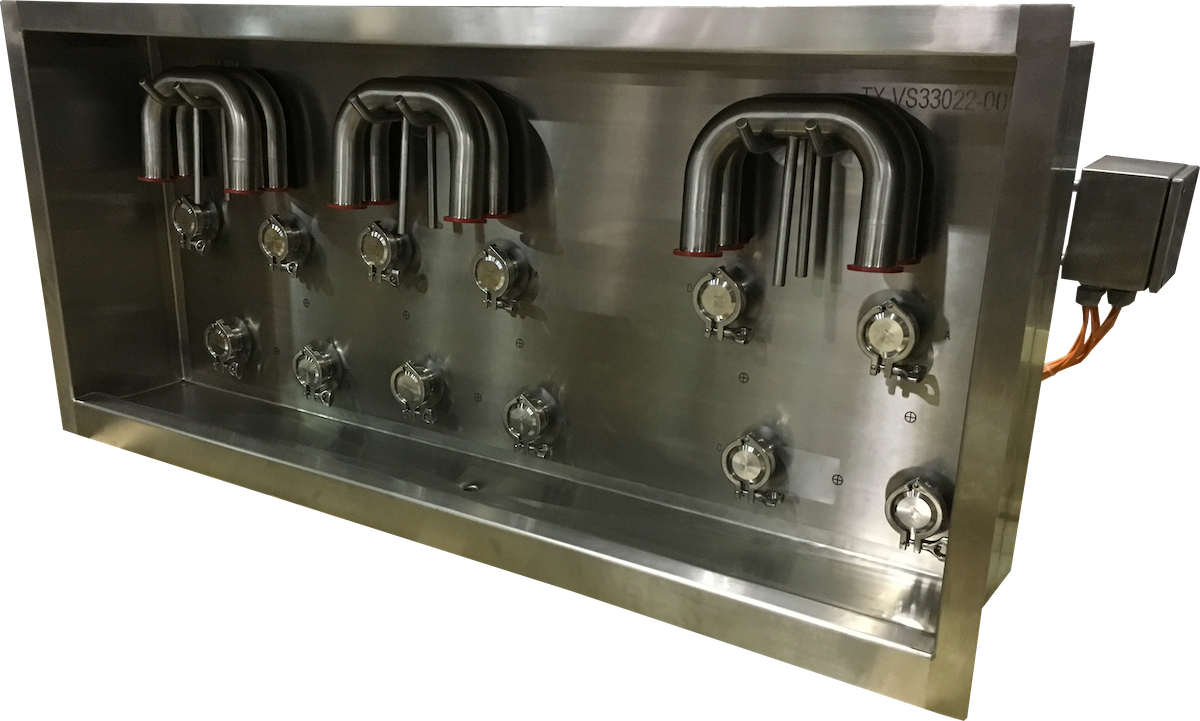

Wall-Mount

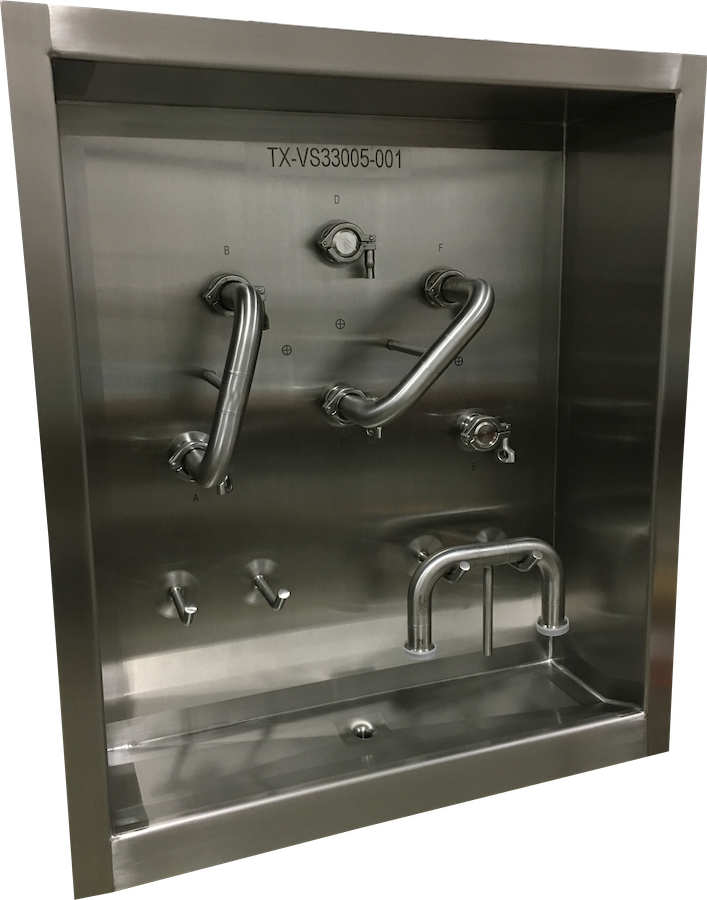

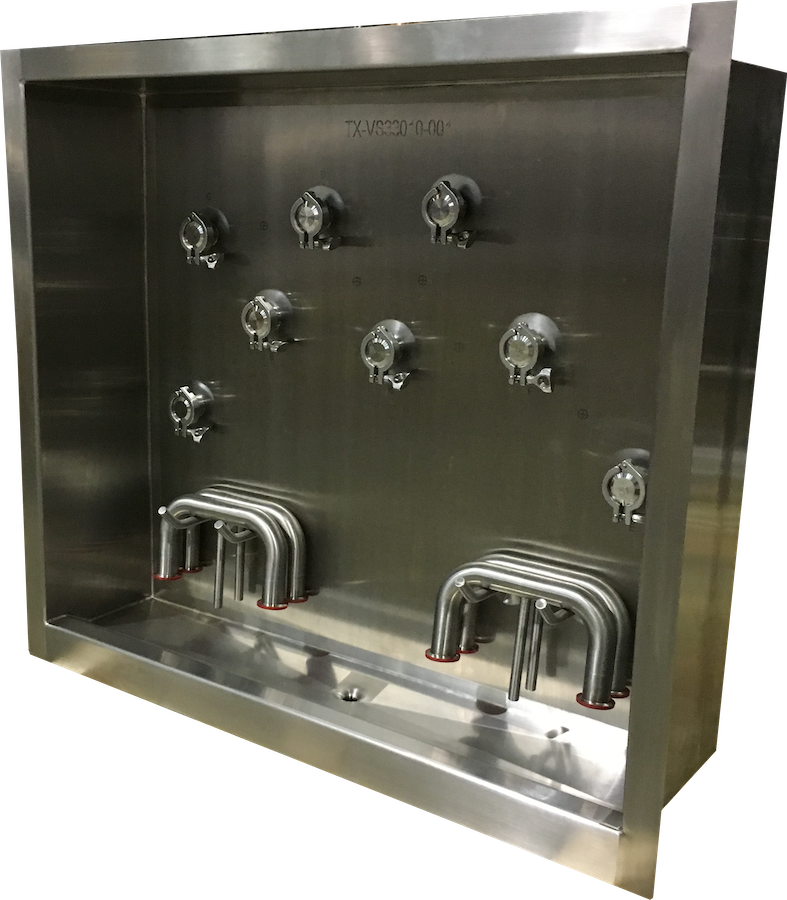

Transfer panel assemblies may be flush-mount or recessed alcove-style for installation within facility wall paneling.

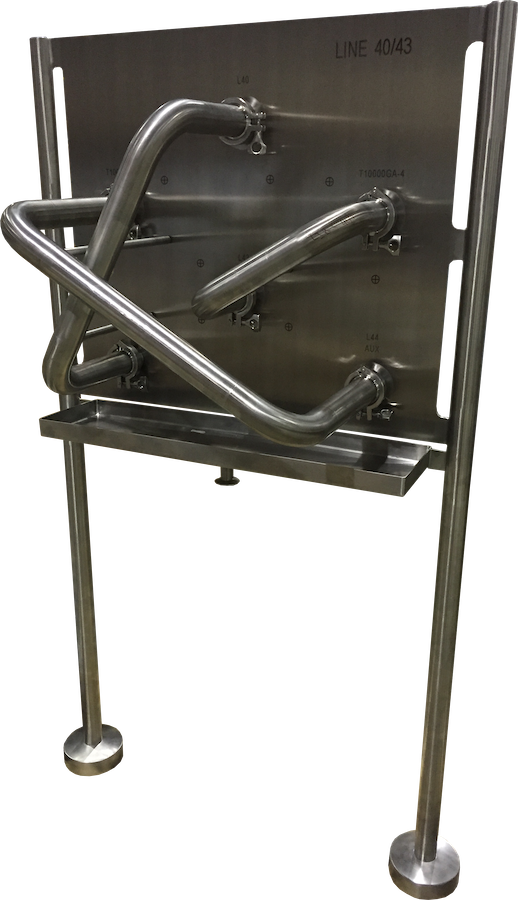

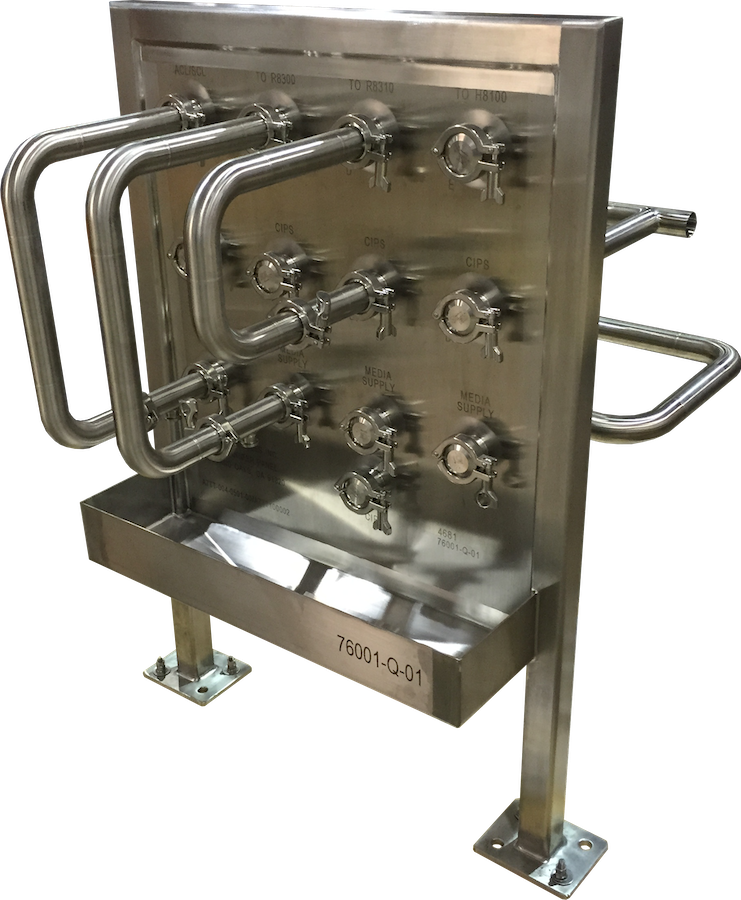

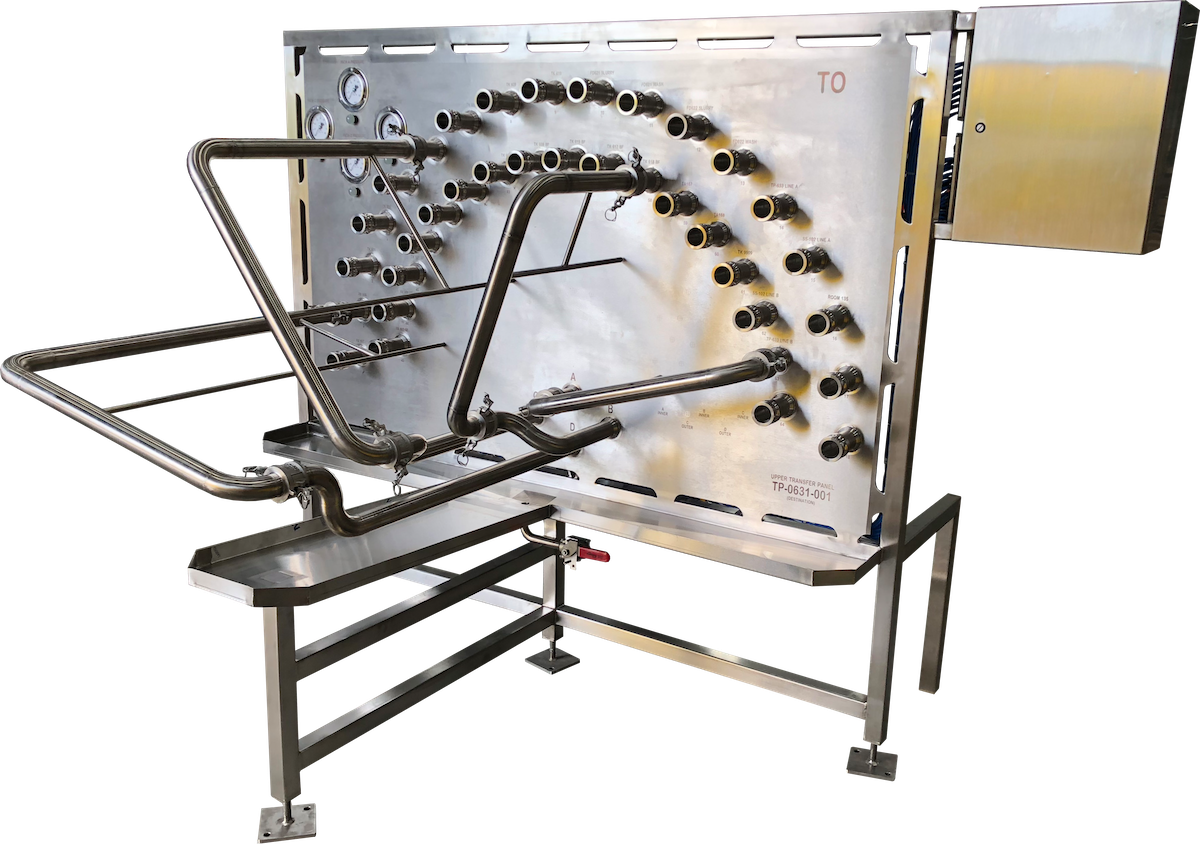

Floor-Mount

Free-standing assemblies include mounting legs to allow locating at an optimal location within the process area.

Expanded Possibilities

Multi-Level panels support concurrent transfers to or from common groups of unit operations. This innovative port layout enables routing flexibility that cannot be provided using standard nozzle layouts.

Unmatched Durability

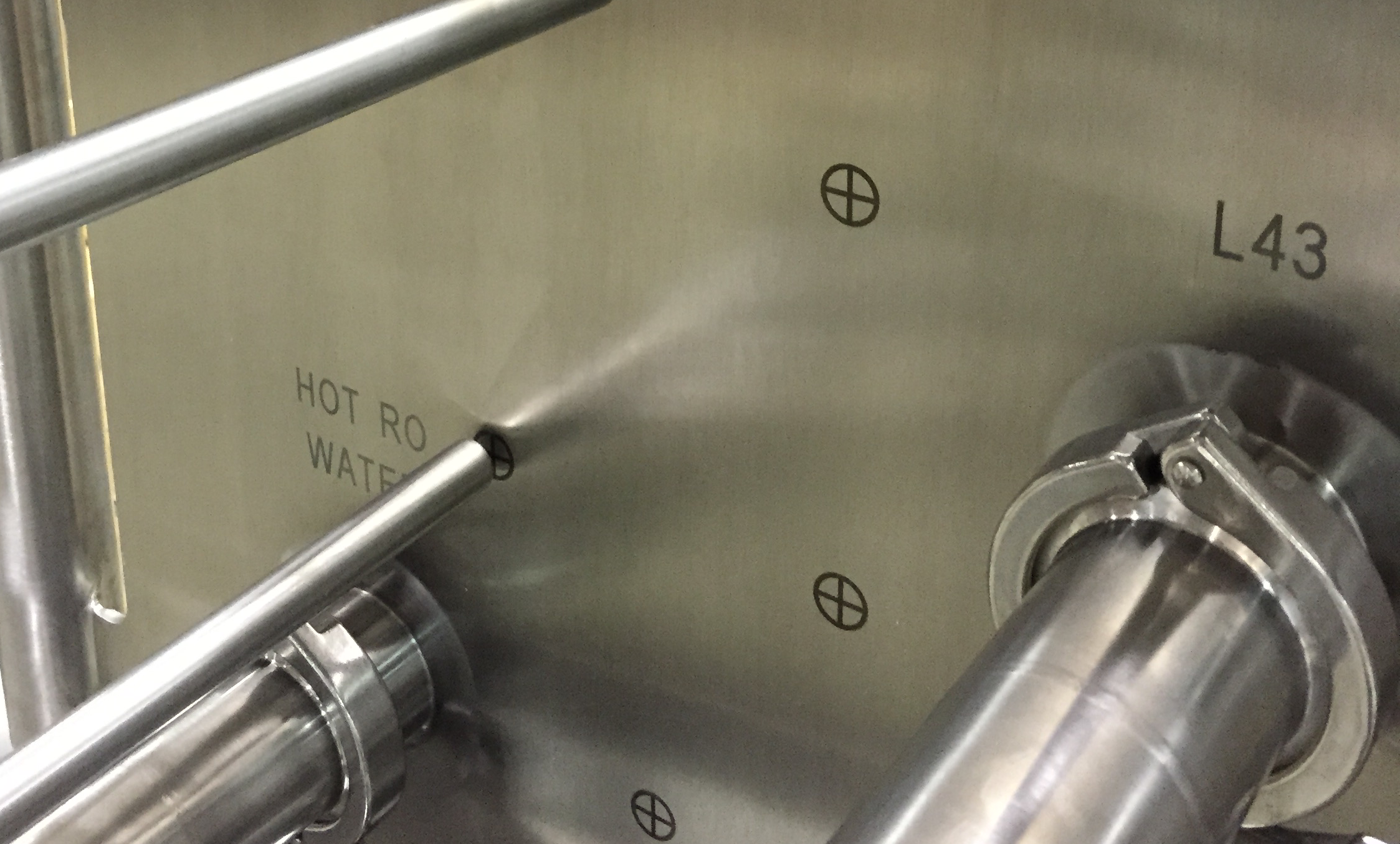

Laser Etching provides highly-visible, detailed and permanent panel tagging for port identification and proximity sensor targets.

Maximum Strength

Machined heavy-wall ferrules are standard for hygienic port fittings. These add strength and maintain high-purity internal surface finish throughout the assembly process.

Maximum Precision

To ensure precise results our design and fabrication standards require laser-cut back plates and compliance with BPE-specificaitons for fabrication tolerance.
